Stain Finishes
Choose from 6 stain colours applied at factory for a consistent and high quality finish. Alternatively, doors can be supplied with only a protective base-coat ready for you to finish on site to a stain colour of your choice.
-
Home
-
Garage Doors & Automation
-
One piece up and over
- Timber Range by Garador

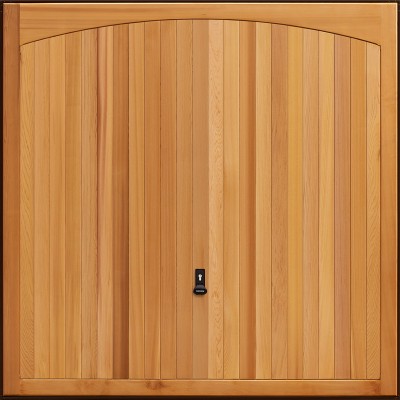

Combining the natural beauty of cedar wood with a welded steel chassis system for strength and longevity.
Overall a beautiful and good quality range of cedar garage doors with a selection of tongue & grooved designs as well as wider panel styles of the Elizabethan range which utilises solid cedar with fine exterior grade plywood.
-
Light Oak -
Antique Oak -
Mahogany -
Walnut -
Chestnut -
Ebony
- Built using only high grade cedar
- 10 year warranty on the mechanism
- Developed in Germany - Manufactured in the UK
- Safe and fully compliant with industry regulations
- 2 year warranty on the timber panel
- Compatible for remote automation

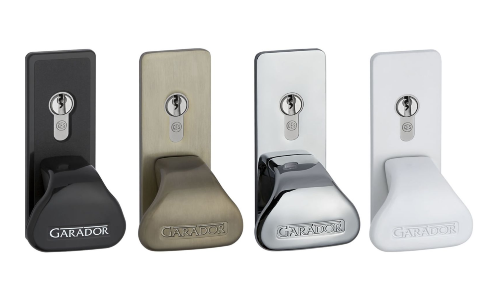

Handles
Durable black plastic handle as standard or choose from 3 solid diecast metal handles.
- Black plastic (standard)
- Brass effect
- Chrome effect
- White
Remote Automation
This range is fully compatible for automation so long as the door is correctly specified with the retractable mechanism.
Find further details about the motors and access control options of under 'Remote Operators'.
Windows
Tough and durable perspex windows in clear or crystal opaque.
- Plain
- Georgian leading (Sandhurst design only)
- Diagonal leading (Sandhurst design only)

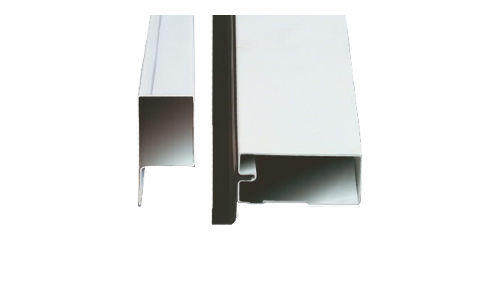

Steel Frame
A galvanised and power-coated steel box frame provides a strong, more secure and low maintenance option over timber frames. Available in brown or white as standard with 16 further colours available as a cost option.
4-point locking upgrade
Improve security by upgrading from the standard 2-point to the 4-point locking.
Lock cylinder upgrade
Upgrade to a BS Kitemarked security rated lock cylinder.
- Anti-drill
- Anti-pick
- Anti-snap
- Anti-bump
Retractable 'Plus' mechanism
The pivot arms on standard retractable door gear reduce drive through width which is why the 'retractable plus' pivot arm has been designed to maintain clear passage where it matters.
Weather Stop door threshold
This threshold is ideal for closing up the small gap underneath the garage door, prevents water, leaves, dust and debris from getting under the garae door. Made from aluminium it can withstand heavy traffic.
Garador Up and Over Range Brochure 06-2022 -
Garador Price List Dec 2023 -
Key Features
Steel chassis construction
A hand built cedar wood panel is neatly rebated and secured within a welded steel chassis system which provides strength, rigidity and ensures relaible fixing points for the lifting mechansim. The 18mm powder-coated steel box section visibly frames the timber garage door panel and helps in protecting the edges.
Cast alloy cable drum
The Canopy mechanism has cast cable drums with 2.3mm steel wire cables ensuring reliable smooth operational performance for many years.
Adjustable tension
Both the Canopy and Retractable lifting mechanisms have adjustable springs which ensure the door can be balanced as necessary.
Anti-drop safety (canopy gear)
The Canopy mechanism has high quality sprung loaded anti-drop rollers with a metal catch for ultimate safety in the event of a spring or cable failure.
The larger wheels also ensures a smoother and easier opening/closing of the door.
Anti-drop safety (retractable gear)
Retractable doors use a multi-spring mechanism which mean in the event of a single spring failure the remaining springs provide enough tension to prevent the door falling with force.
